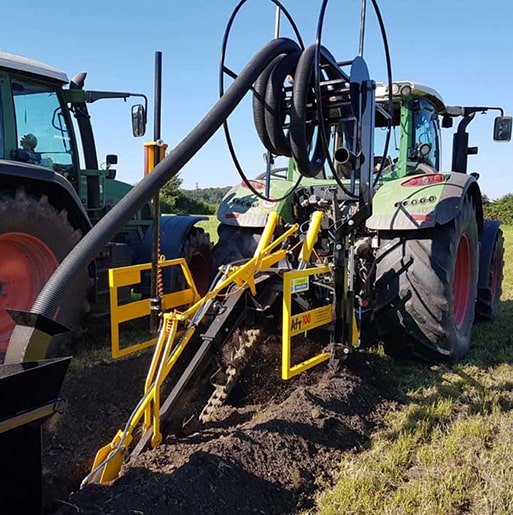

AFT100 – A robust trencher for tough digging conditions
Improve yield across your farm by 25 to 35% – Protect your crops against waterlogging with clean-cut and laser-graded drainage trenches
Powerful multi-purpose trencher for professional landscapers. A tough trencher which can deal with tough digging conditions.
For tractors from 80 to 140+ hp (60-105kW), with vario transmission or a creeper gearbox.
The ideal tool to quickly install sophisticated drainage systems, as and when you need it and with minimal disruption to play.
Optional Items
Soil clear-up systems
Heavy Duty chain
Pipe laying chutes and pipe reel carriers
Laser depth grading
Types of Sportsturf Drainage Trenchers
The AFT45 for compact tractors, refined and improved over more than 15 years, is still the most versatile sports field trencher on the market today.
For larger tractors over 70HP, the AFT100 with our unique soil clear-up two tier conveyor system offers high speed, accurate trenching, up to 10 times faster than a backhoe or excavator.
The Wizz Wheels 55 and 75 are the undisputed leaders in their class for the installation of intensive sportsturf drainage systems and can cope with exceptionally hard and stony conditions as well as soft and wet grounds.
The Sandbander has revolutionised the way sand slits are installed on sports surfaces. The unique blade design and oscillating movement installs drainage slits with well consolidated sand, even when wet.
The Dual Use Hopper is the perfect tool for back filling narrow trenches with both gravel and/or sand and works equally well with wet or damp sand.
The AFT Traction is our self-propelled trencher for small scale landscaping projects – irrigation, drainage, cables, curb stones, etc
Our sportsturf trenching machines are suitable for a wide range of sports fields, golf courses and amenity surfaces. Speak to the team today for more
Maximum Depth: 1.0, 1.2, 1.4, 1.6 or 1.8m
Trench Width:
Standard Mainframe: 125 to 300mm
Wide Mainframe: 125 to 400mm
For ease of maintenance, the chain is made up of individual links
Chain is fitted with soil blades and tungsten-carbide-tipped teeth
Soil auger assembly (to place the finely cut spoils to the sides of the trench)
Available with a pipe reel carrier and pipe chute to place the drainage pipe at the bottom of the trench
Optional combined pipe & gravel chute for a one-pass operation
Optional soil clean-up conveyor system (discharge height 2.2m)
Optional laser grading accessories
Weight: 1,400 kg–1,900 kg (depending on accessories)
120+ HP with CAT 2/3 linkage
Vario transmission OR Creeper gearbox (with a minimum speed of 50-100 metres/hour)
1-3 sets of feed/return spool valves depending on trencher accessory choices
