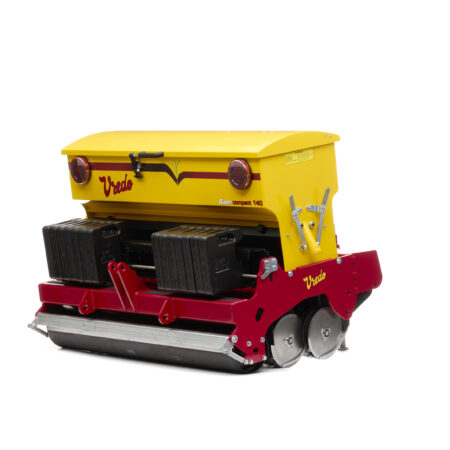

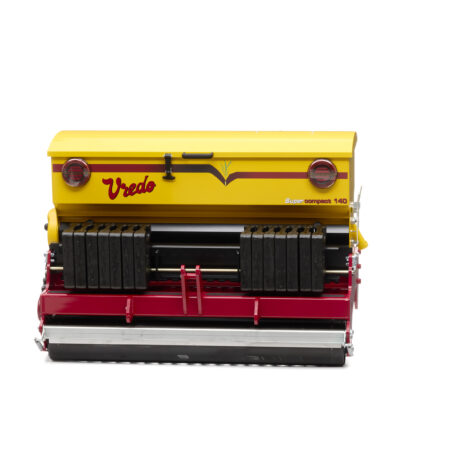

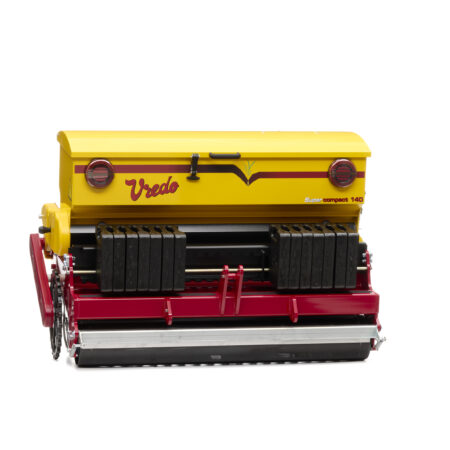

VREDO® – SuperCompact Series

Category:
Brands::Vredo®
Brands

Description

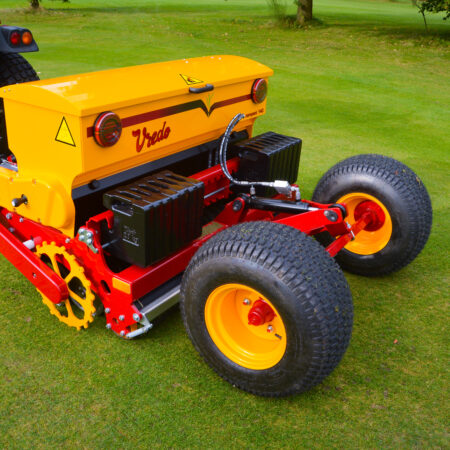

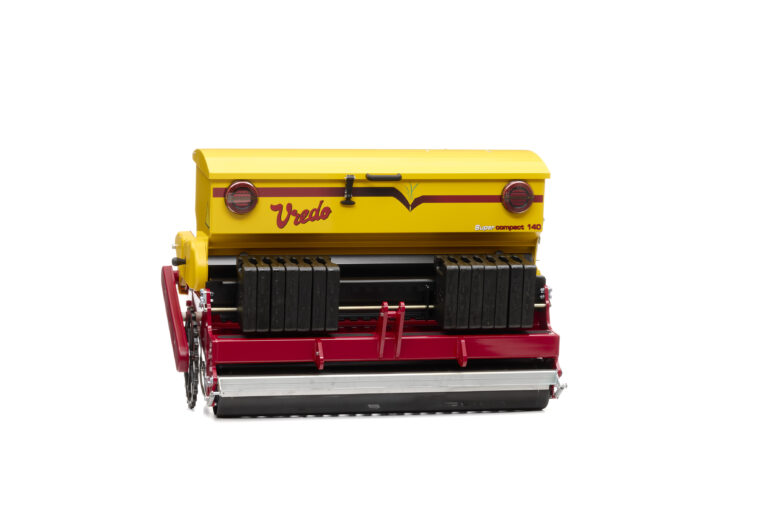

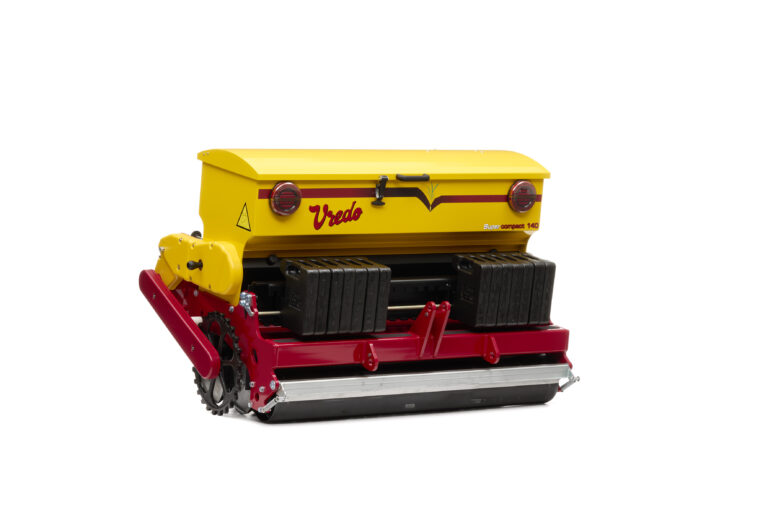

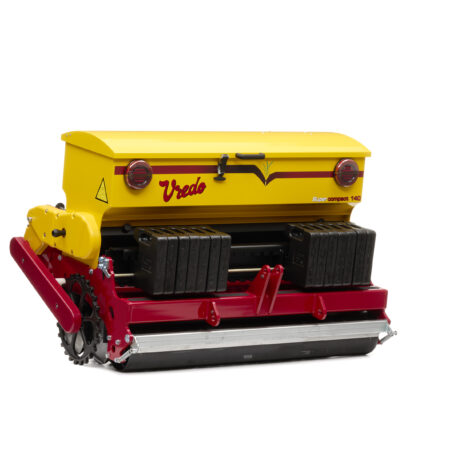

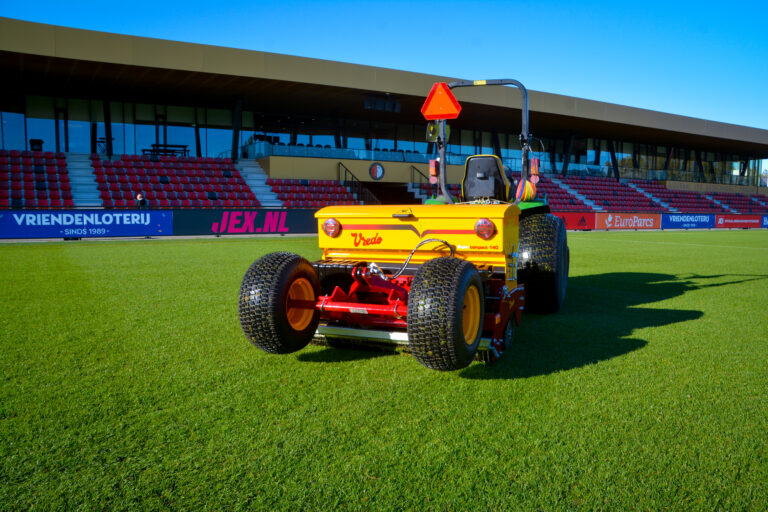

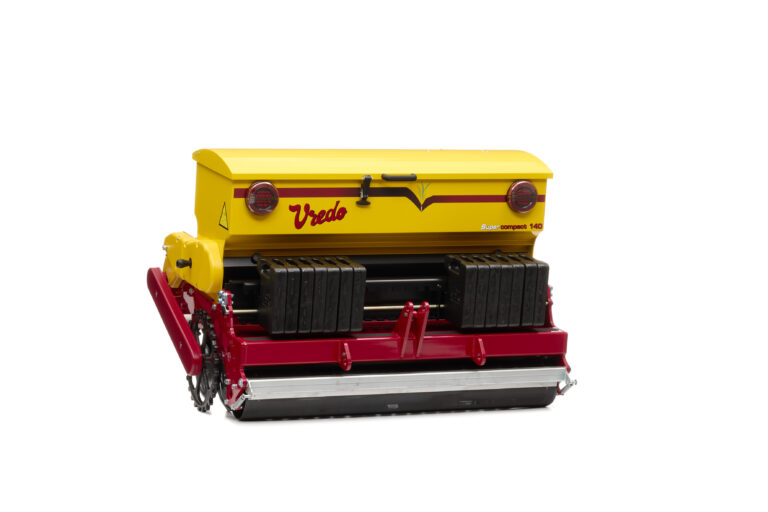

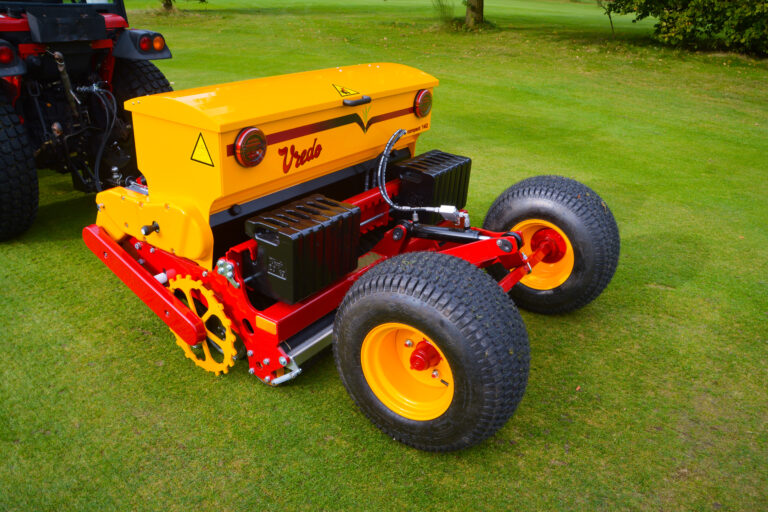

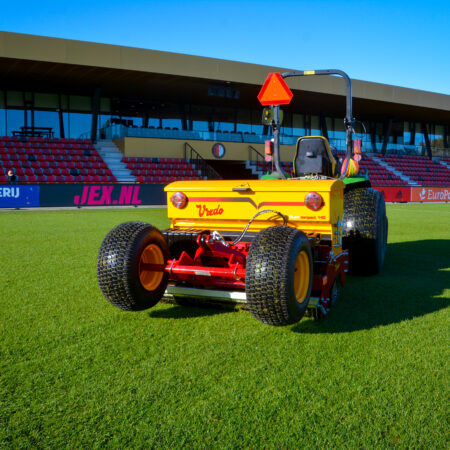

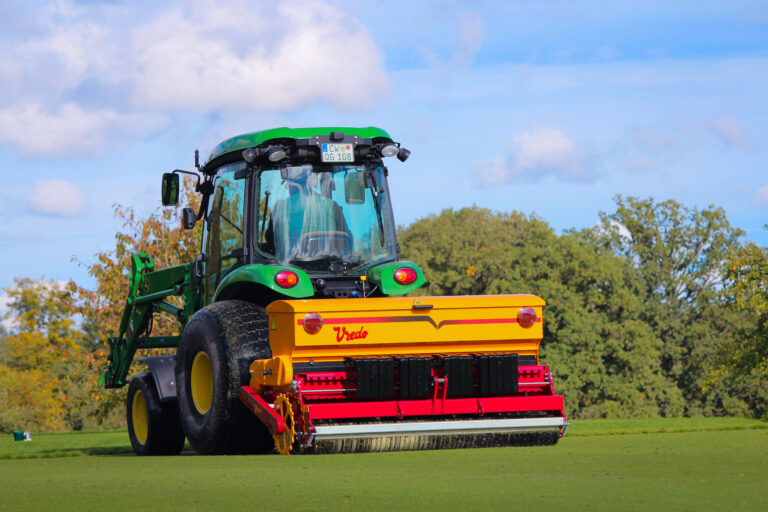

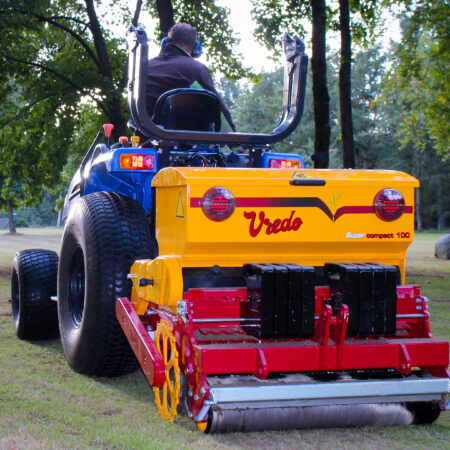

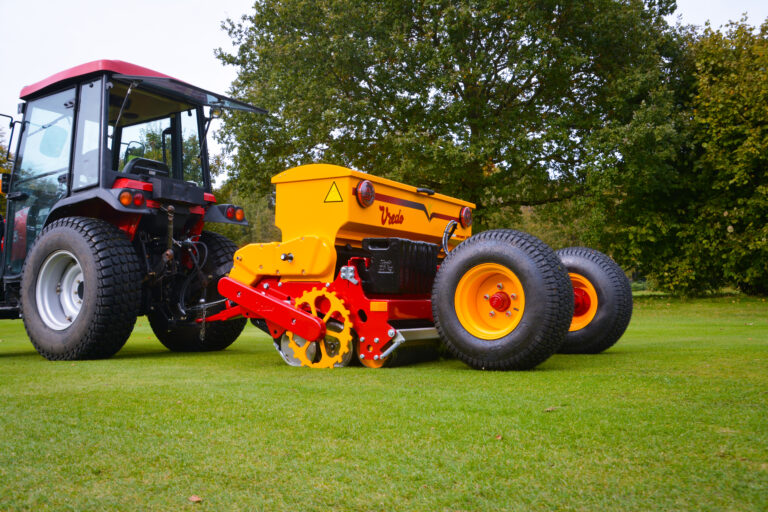

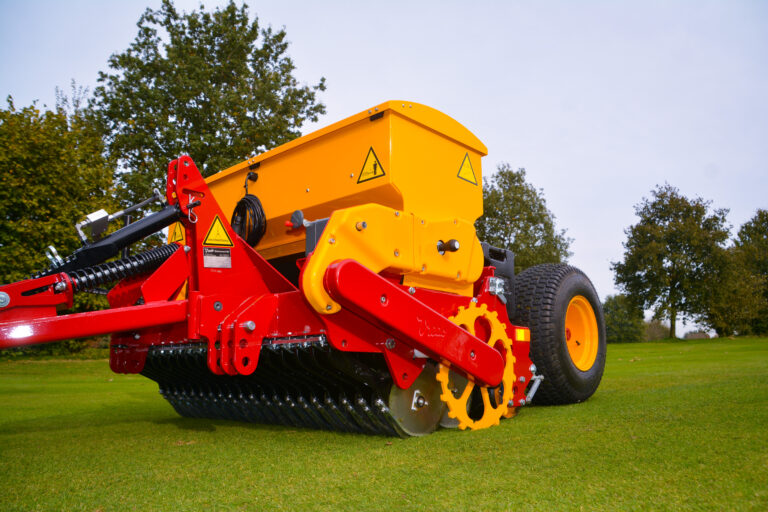

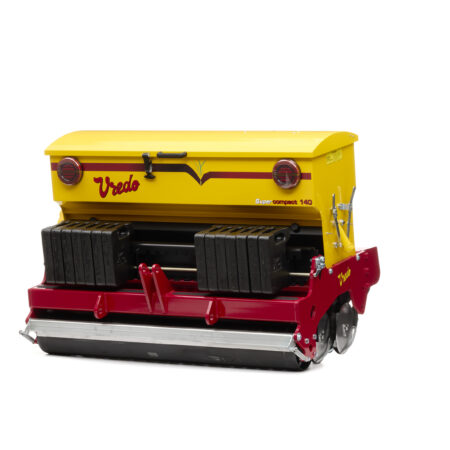

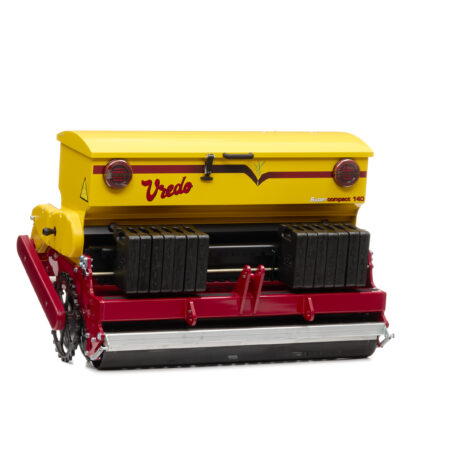

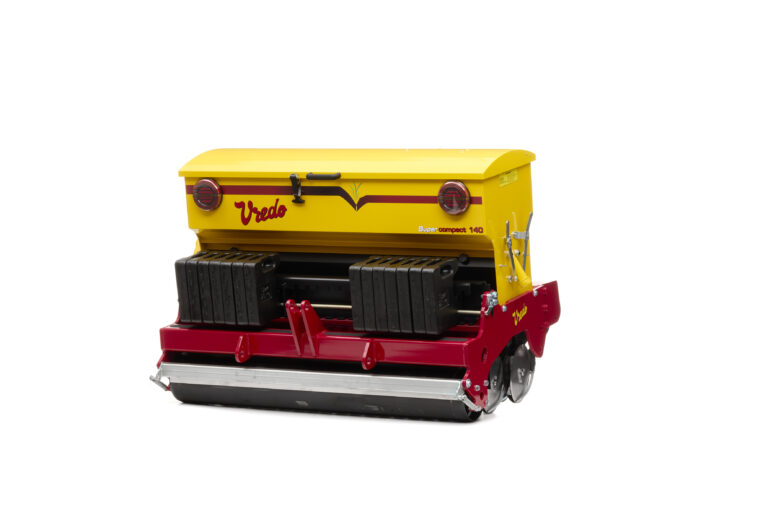

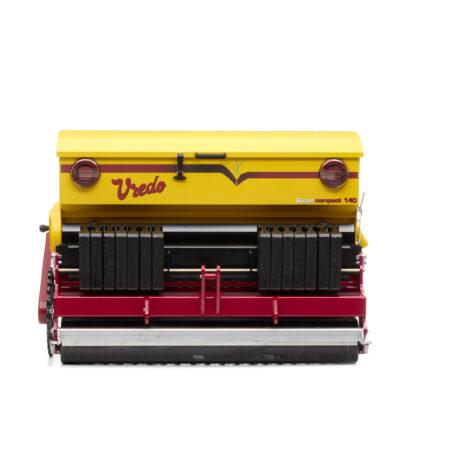

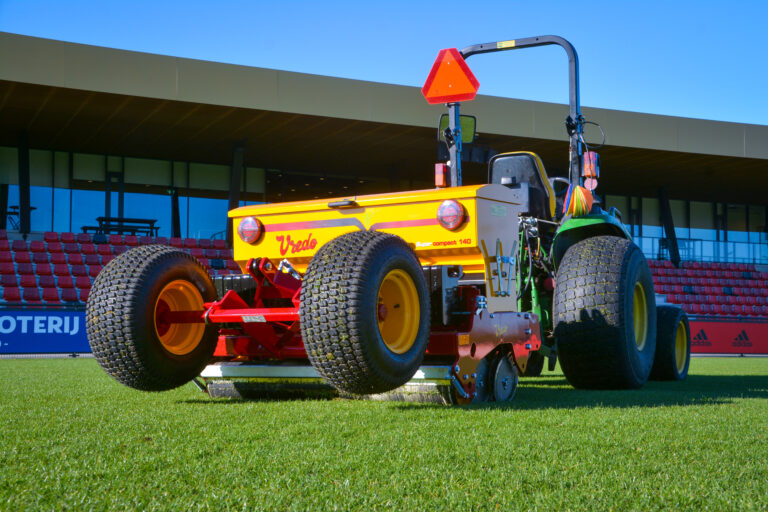

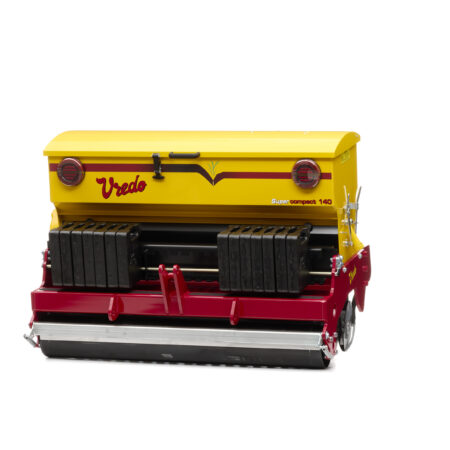

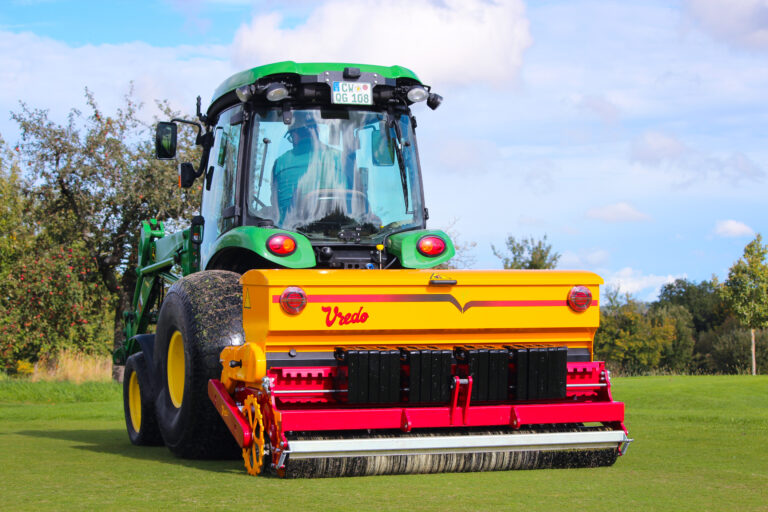

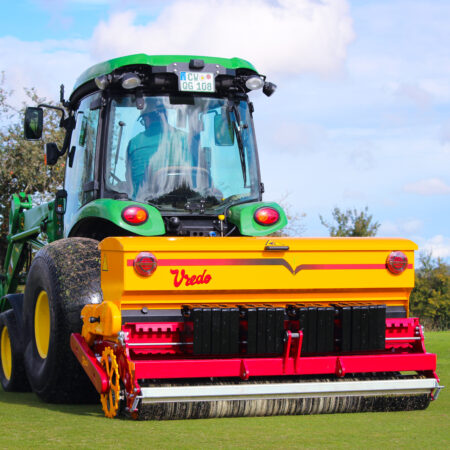

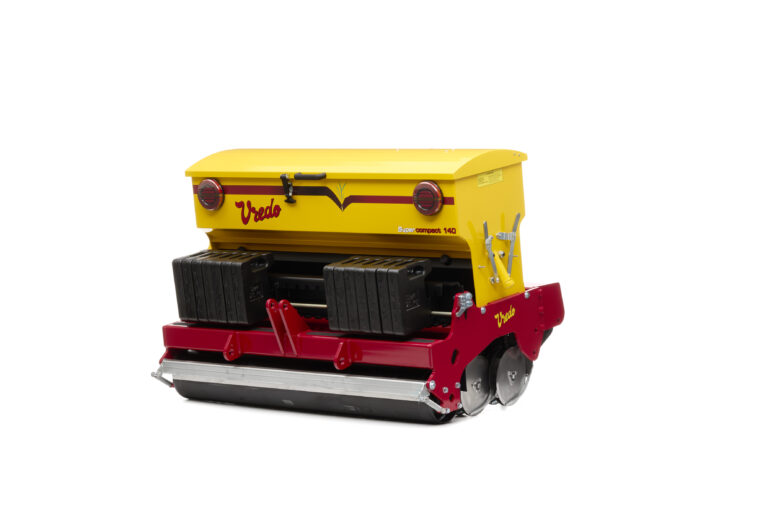

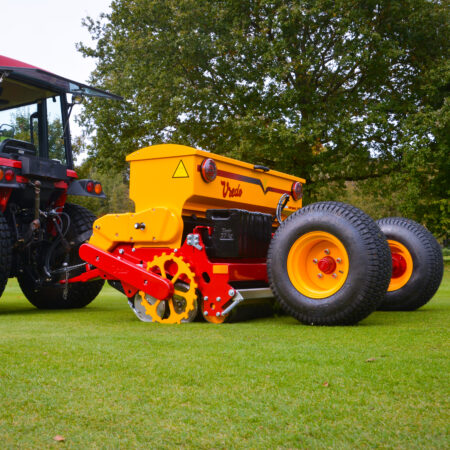

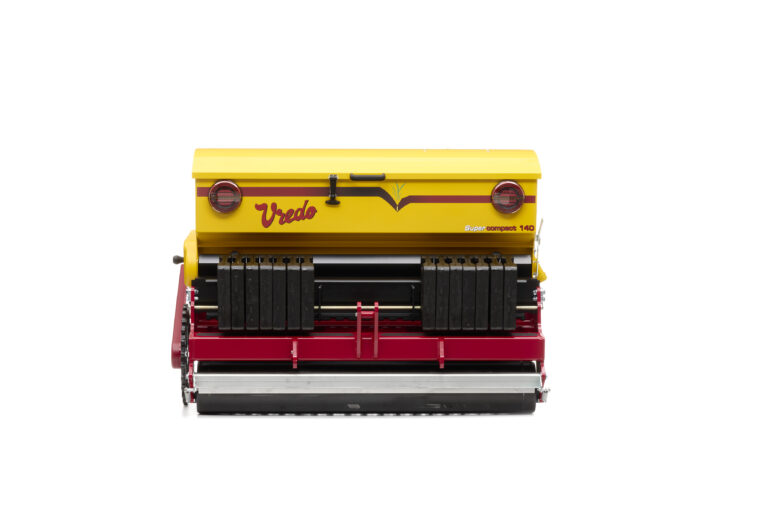

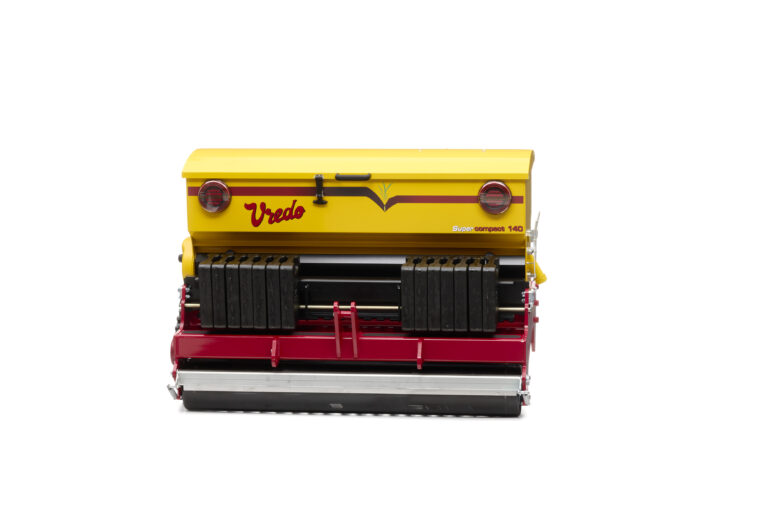

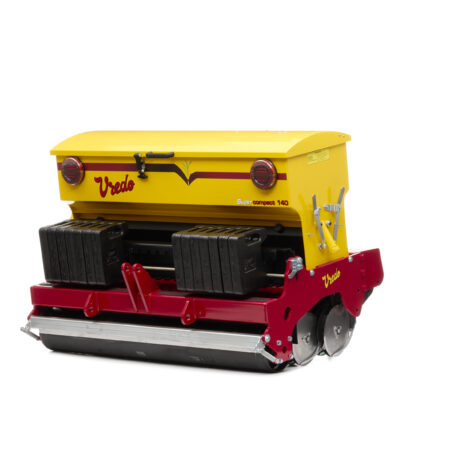

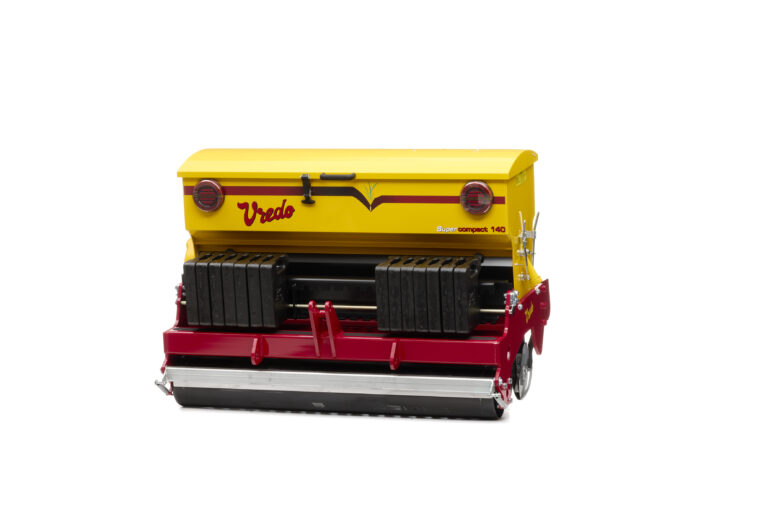

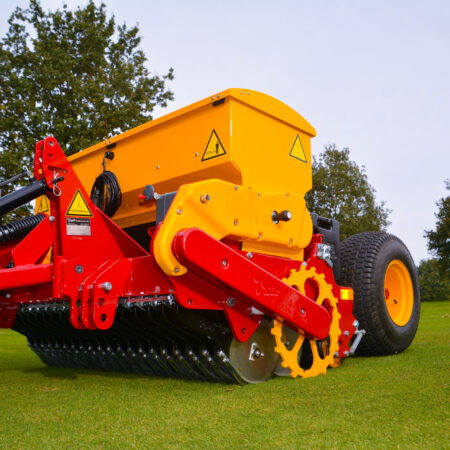

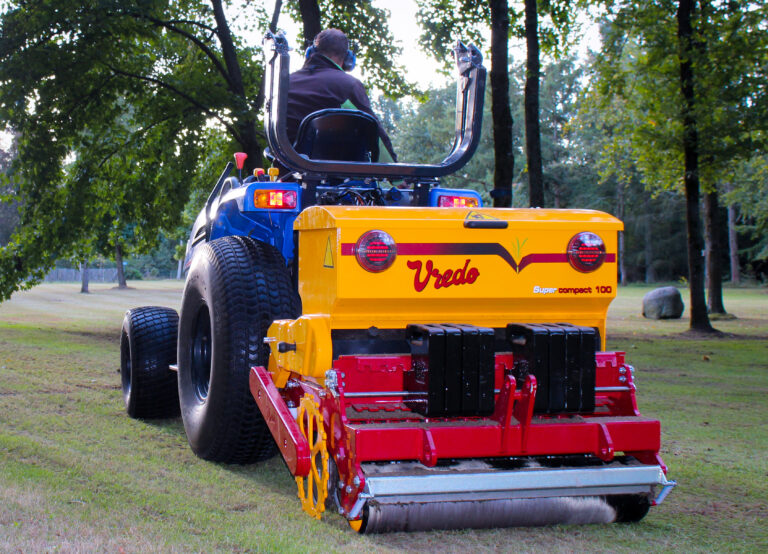

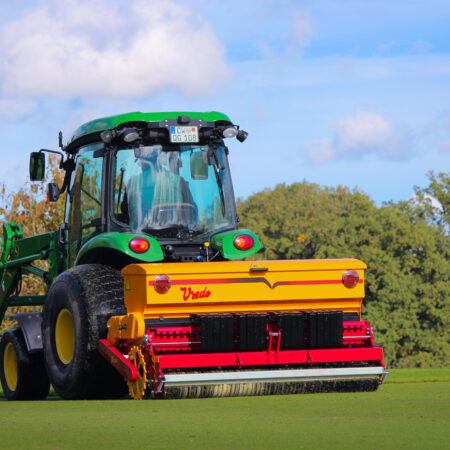

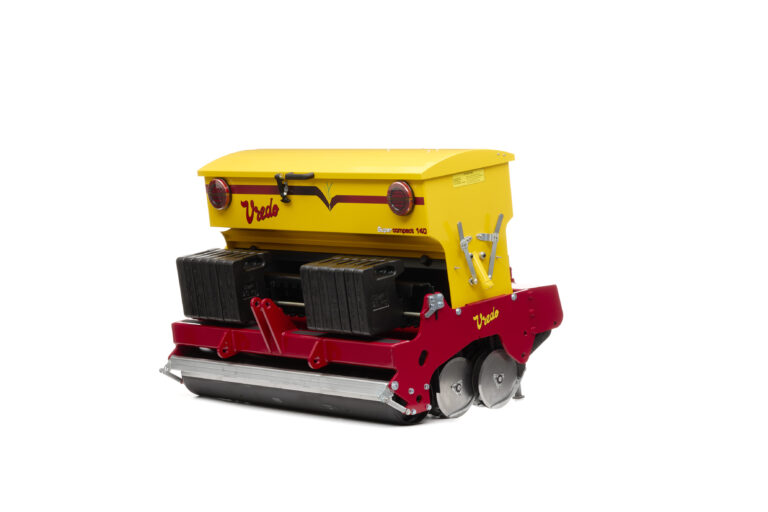

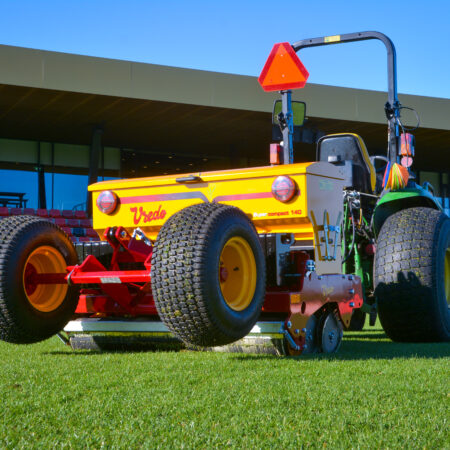

The VREDO® SuperCompact is available in trailing for undulating applications in some models from 1.2m working, due to the unique action of the Vredo seed application, the grass seed is placed in direct contact with the soil, giving almost total seed germination. A double row of discs give 35mm seed spacing, meaning that one-pass operation will generally suffice with no disruption to play even on fine turf. 4 models of the Super Compact Series are available, each as a 3-point linkage mounted option or towed with it’s own hydraulic lift frame.

DZ208.035. 3 – PL only

  • Disc spacing: 35mm
  • Working width: 0.80m
  • Overall width: 0.8m
  • Hopper capacity: 135 litre
  • Tractor power (towed): 30HP
  • Tractor power (mounted): 45HP
  • Operating speed: up to 15km / hr
  • Options: Towing frame / weight carrier / weights



DZ 212.035

  • Disc spacing: 35mm
  • Working width: 1.20m
  • Overall width: 1.42m
  • Hopper capacity: 135 litre
  • Weight (empty) mounted: 660kg
  • Weight (empty) towed: 980kg
  • Tractor power (towed): 30HP
  • Tractor power (mounted): 45HP
  • Operating speed: up to 15km / hr
  • Options: Towing frame / weight carrier / weights

DZ 216.035

  • Disc spacing: 35mm
  • Working width: 1.60m
  • Overall width: 1.82m
  • Hopper capacity: 180 litre
  • Weight (empty) mounted: 810kg
  • Weight (empty) towed: 1,130kg
  • Tractor power (towed): 35HP
  • Tractor power (mounted): 55HP
  • Operating speed: up to 15km / hr
  • Options: Towing frame / weight carrier / weights



DZ 218.035

  • Disc spacing: 35mm
  • Working width: 1.80m
  • Overall width: 2.02m
  • Hopper capacity: 200 litre
  • Weight (empty) mounted: 865kg
  • Weight (empty) towed: 1,205kg
  • Tractor power (towed): 50HP
  • Tractor power (mounted): 60HP
  • Operating speed: up to 15km / hr
  • Options: Towing frame / weight carrier / weights



DZ 222.035

  • Disc spacing: 35mm
  • Working width: 2.20m
  • Overall width: 2.42m
  • Hopper capacity: 250 litre
  • Weight (empty) mounted: 2,000kg
  • Weight (empty) towed: 2,500kg
  • Tractor power (towed): 60HP
  • Tractor power (mounted): 70HP
  • Operating speed: up to 15km / hr
  • Options: Towing frame / weight carrier / weights
